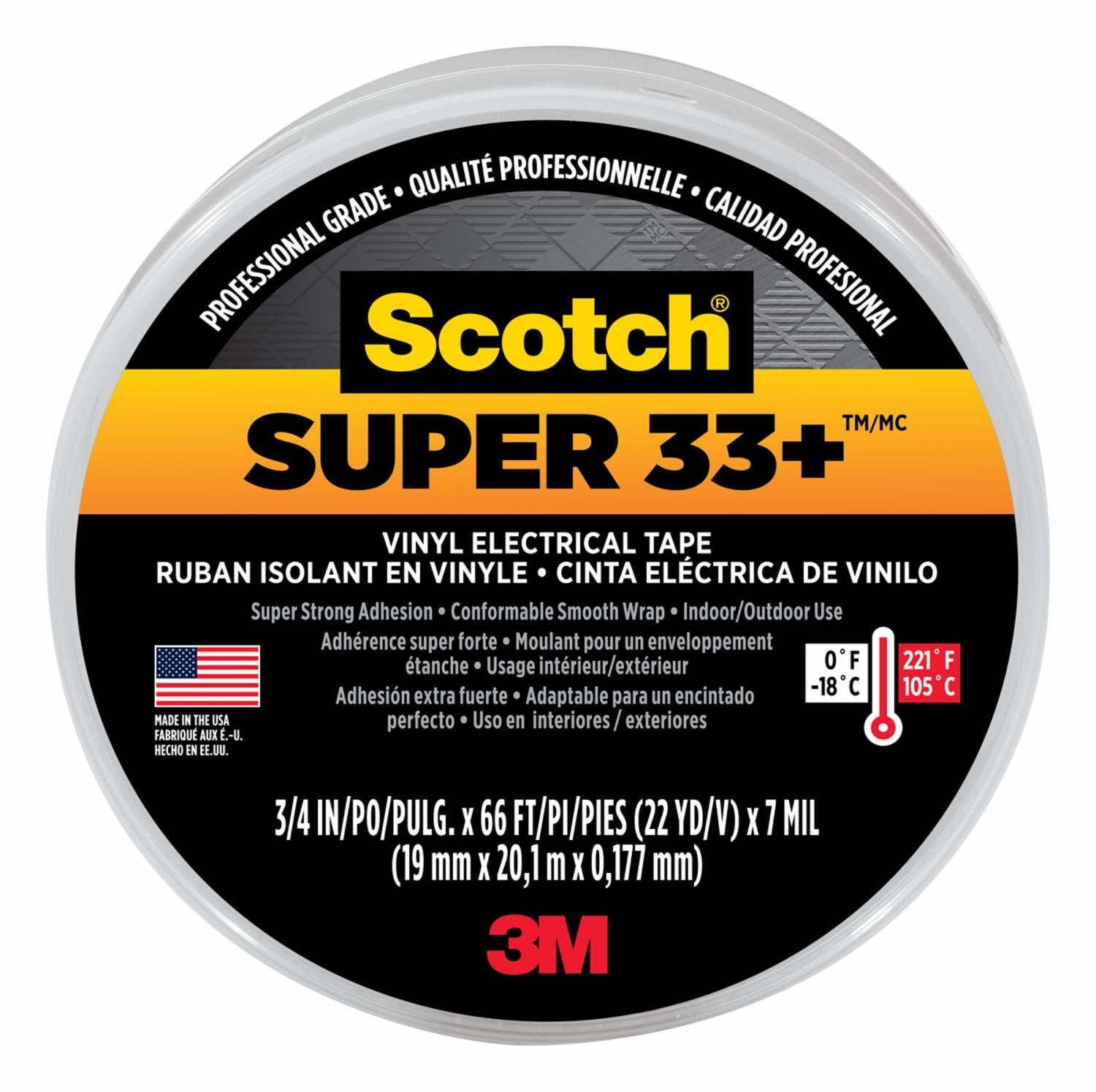

3M Scotch Super 33+ Vinyl Electrical Tape
Super 33+
Overview
Scotch Super 33+ Vinyl Electrical Tape is a professional-grade tape providing electrical insulation for low to high-voltage wires and cables rated up to 600V, with a total thickness of 7 mil (0.18 mm). Its pressure-sensitive rubber resin adhesive and elastic PVC backing stretch up to 250% to conform to irregular shapes, maintaining adhesion and a tight, moisture-resistant seal in cold, heat and outdoor conditions.
Specifications
- Color
- Black
- Base Type
- PVC vinyl backing with rubber resin adhesive
- Service Temperature
- 0°F to 221°F (-18°C to 105°C)
- Certifications
- UL 510 Listed, CSA C22.2 No.197, VDE Mark (Cert. 130462), IEC 60454-3-1-7/F-PVCP/90, RoHS Compliant
Technical Information
- Stretches up to 250% to conform to irregular shapes
- Insulation resistance >10^12 ohms
- Flame retardant, UV and cold resistant
Typical Applications
- Primary electrical insulation up to 600V
- Protective jacketing and mechanical overwrap
- Wrapping irregular shapes on fittings and joints
Industries
Technical Documents
Related Products

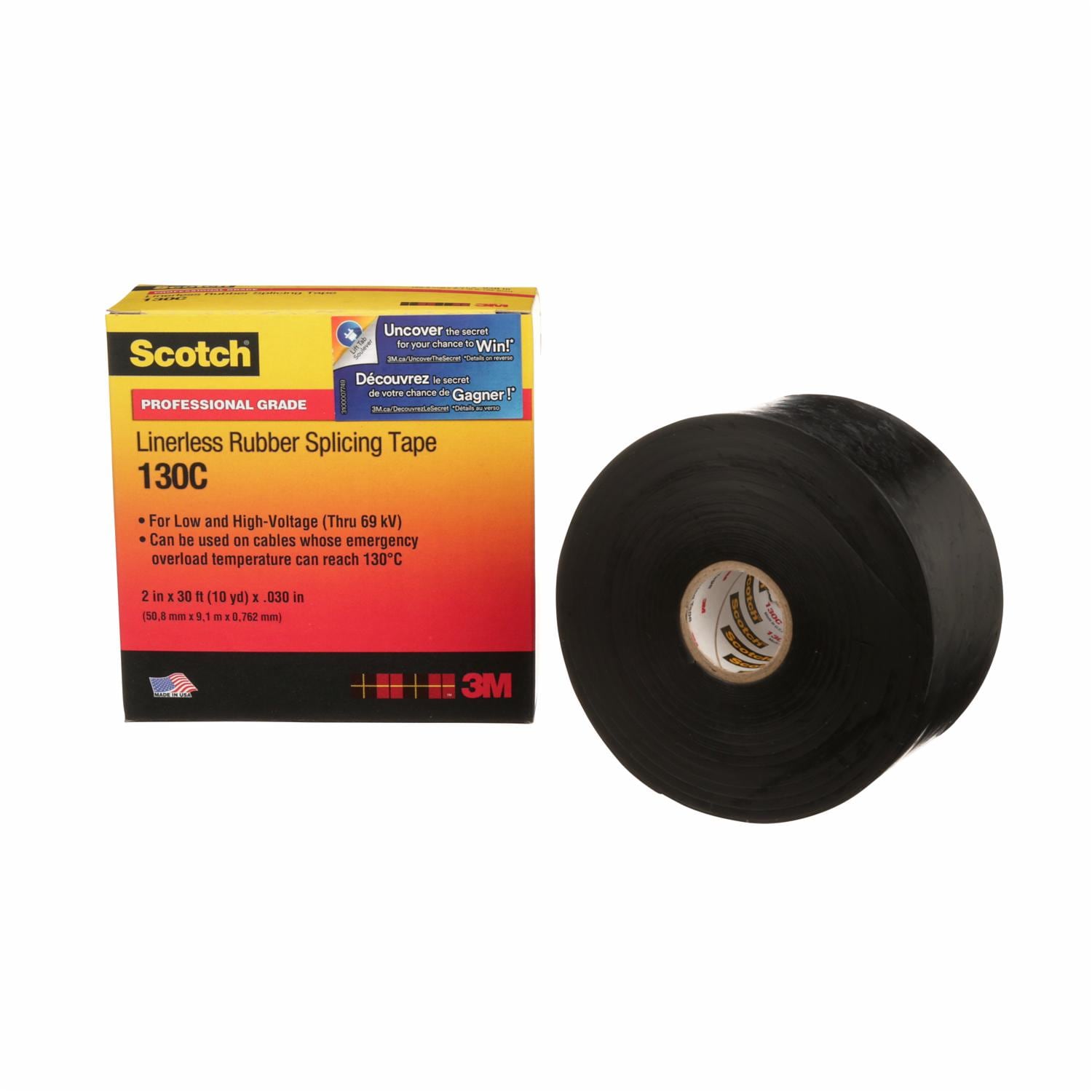

3M3M Scotch Linerless Rubber Splicing Tape 130C
130C
Self-fusing EPDM rubber splicing tape providing void-free, moisture-sealed primary insulation for cables up to 69 kV.

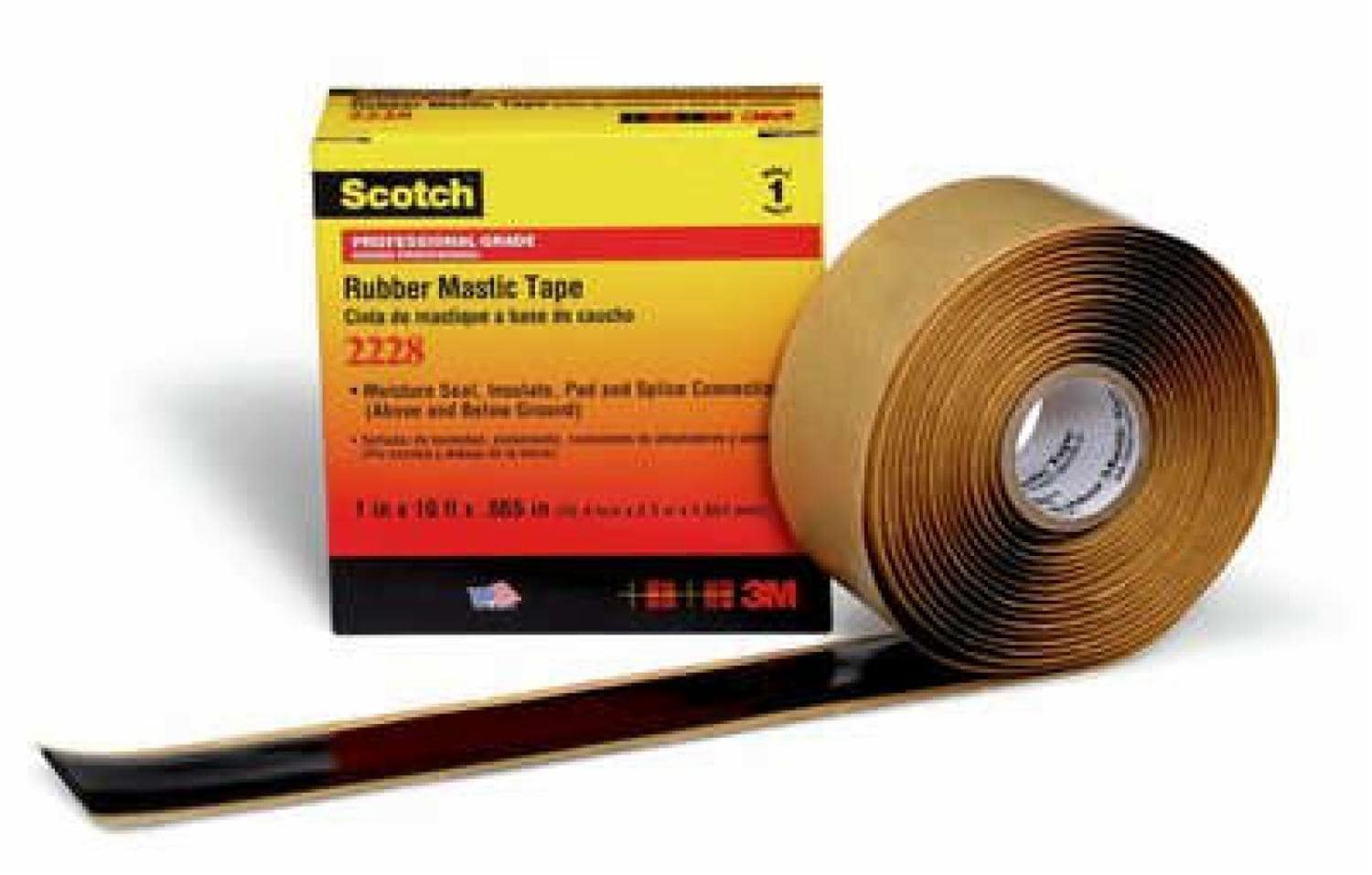

3M3M Scotch Rubber Mastic Tape 2228
2228
65 mil self-fusing rubber mastic tape for insulating, moisture-sealing and padding cable connections up to 1,000 V and bus bars up to 35 kV.

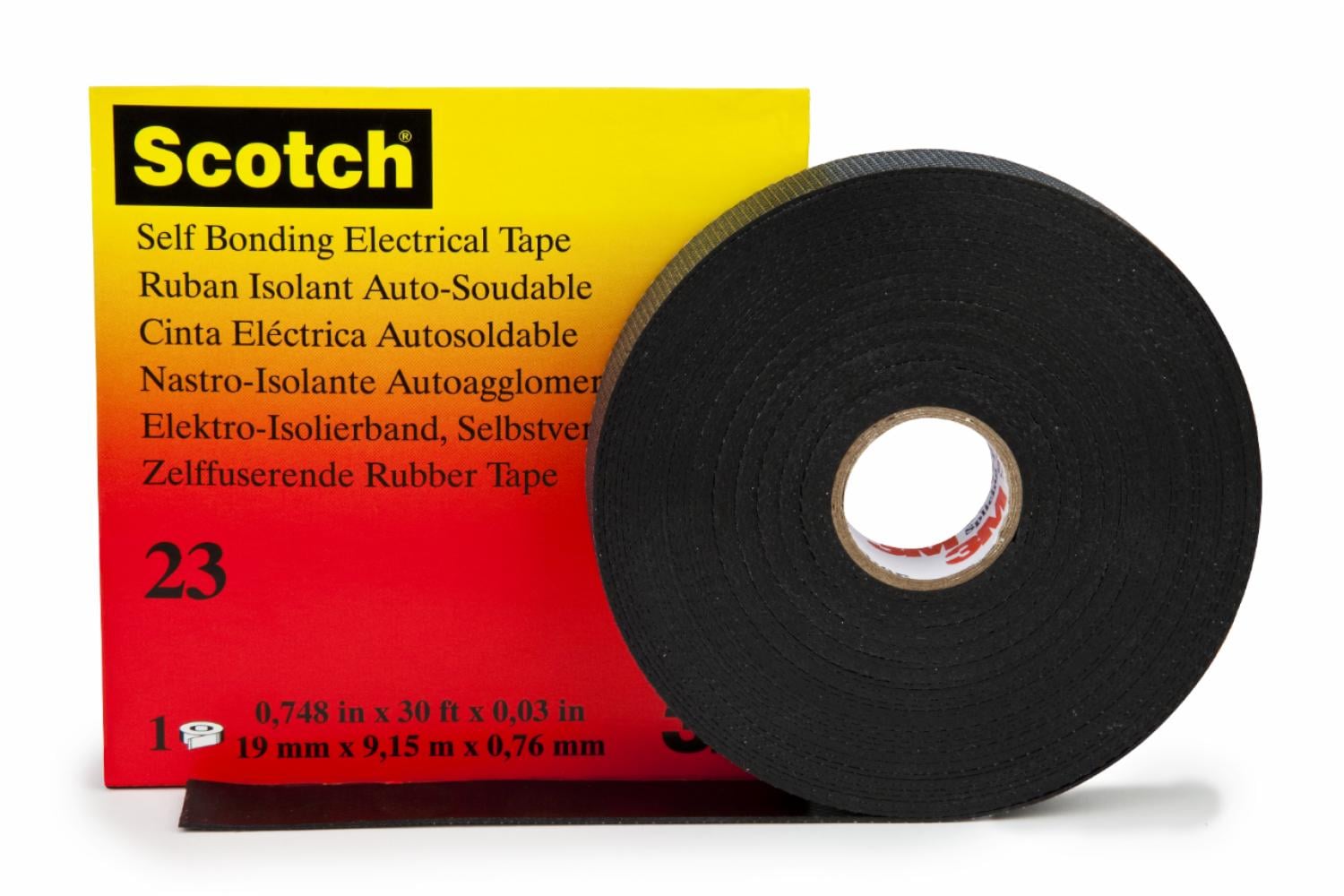

3M3M Scotch Rubber Splicing Tape 23
23
30 mil self-fusing rubber splicing tape for low and high voltage joints up to 69 kV, rated to 90°C continuous.
3M3M Scotch Super 33+ Vinyl Electrical Tape
Super 33+
Premium-grade vinyl electrical tape rated to 600V, stretching up to 250% for high-adhesion splice insulation indoors and outdoors.
3M3M Scotch Super 88 Vinyl Electrical Tape
Super 88
All-weather professional-grade vinyl electrical tape for primary insulation on splices up to 600 V (UL) / 1,000 V (CSA), flame retardant and sunlight resistant.

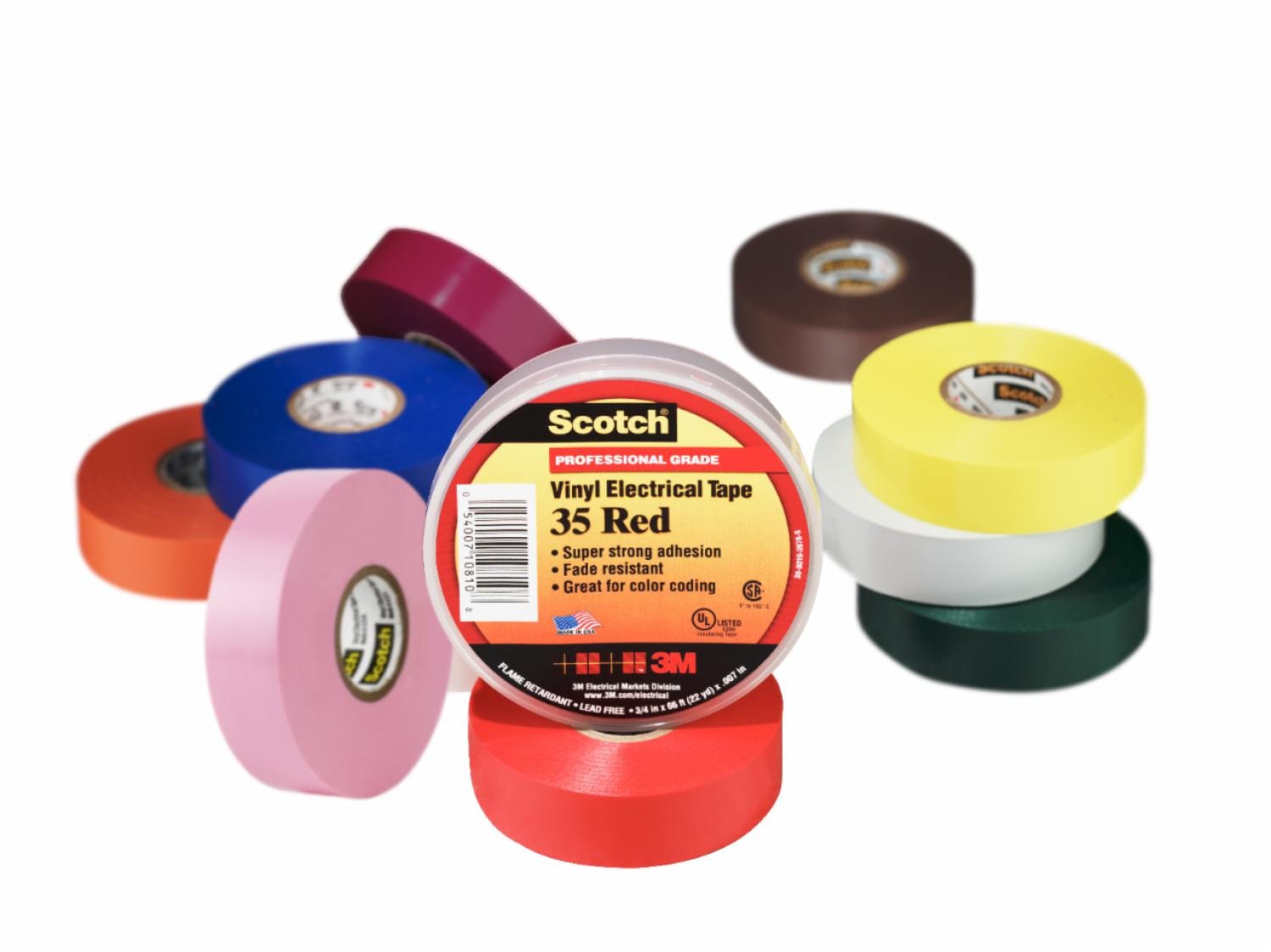

3M3M Scotch Vinyl Color Coding Electrical Tape 35
35
Premium-grade 7 mil vinyl electrical tape for splices up to 600 V and fade-resistant colour coding, rated -10°C to 105°C, in ten colours.

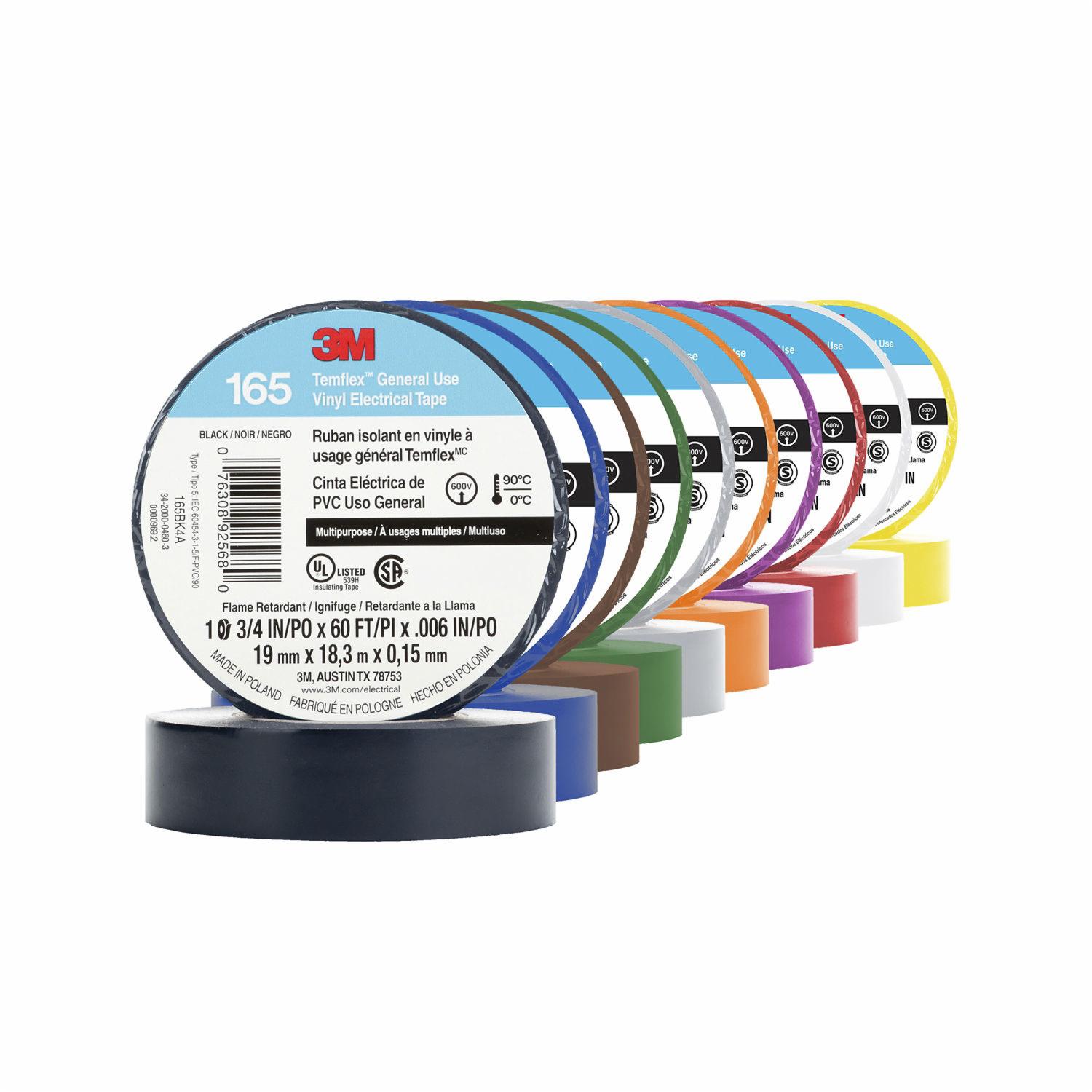

3M3M Temflex Vinyl Electrical Tape 165
165
6 mil flame-retardant PVC electrical tape for splices up to 600 V, rated 19°F to 194°F (-7°C to 90°C), in ten colours.

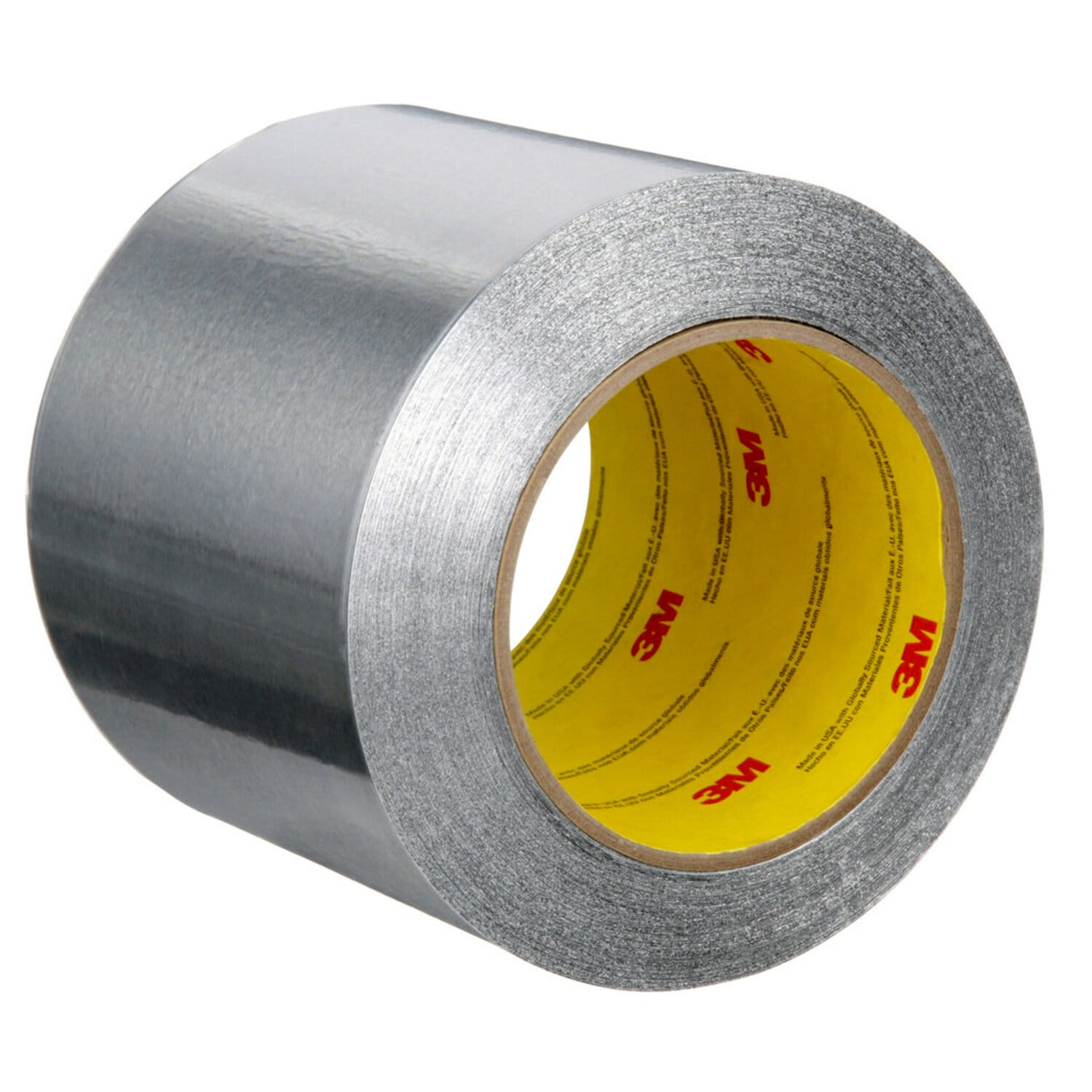

3M3M Aluminum Foil Tape 425
